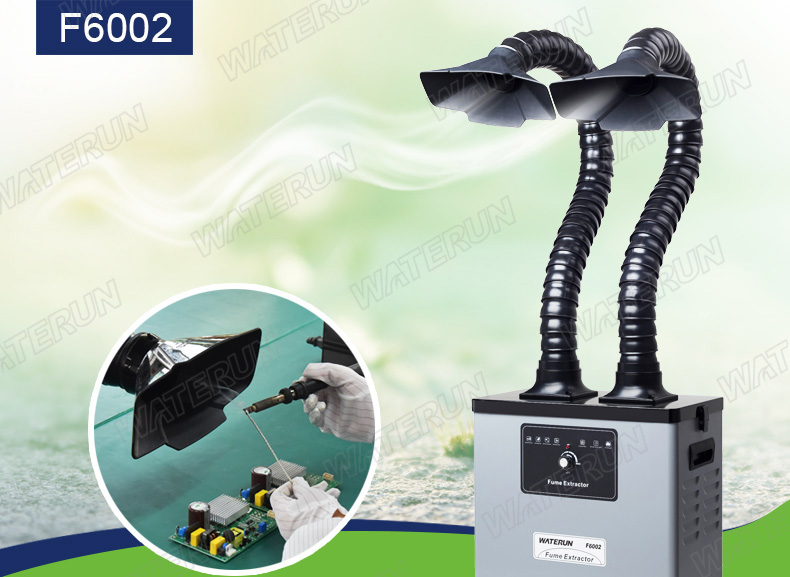

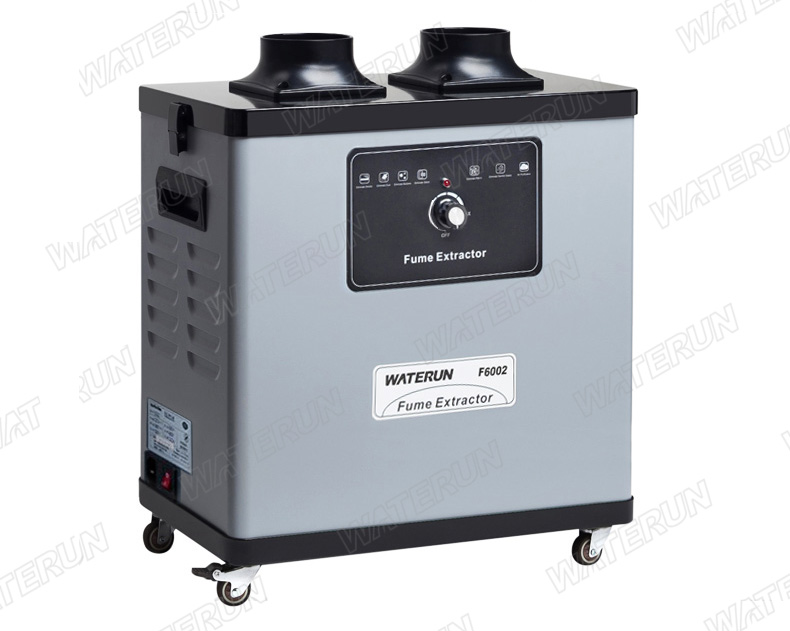

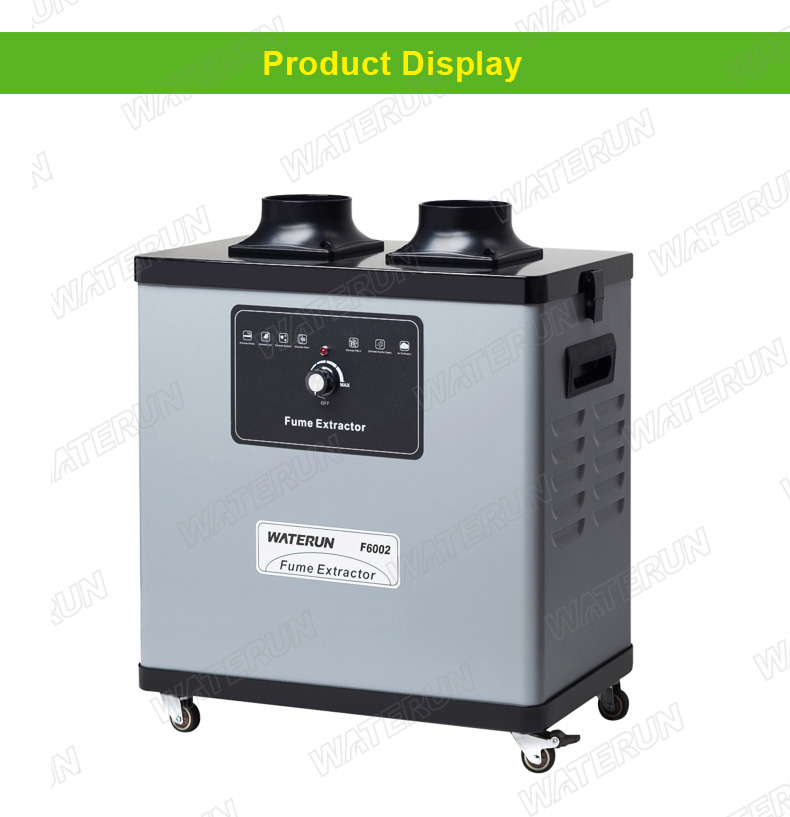

Multiple Filtering Solder Fume Extractor , Double Arm Soldering Fume Extractor

Major Application:

F6002 Solder Fume Extractor is mainly use for Manuel Solder, Solder Pot Solder , Heating Gun Fume Filter , Solder Robot Fume Filter
Filtering Efficiency:0.3micron 99.97%

Description:

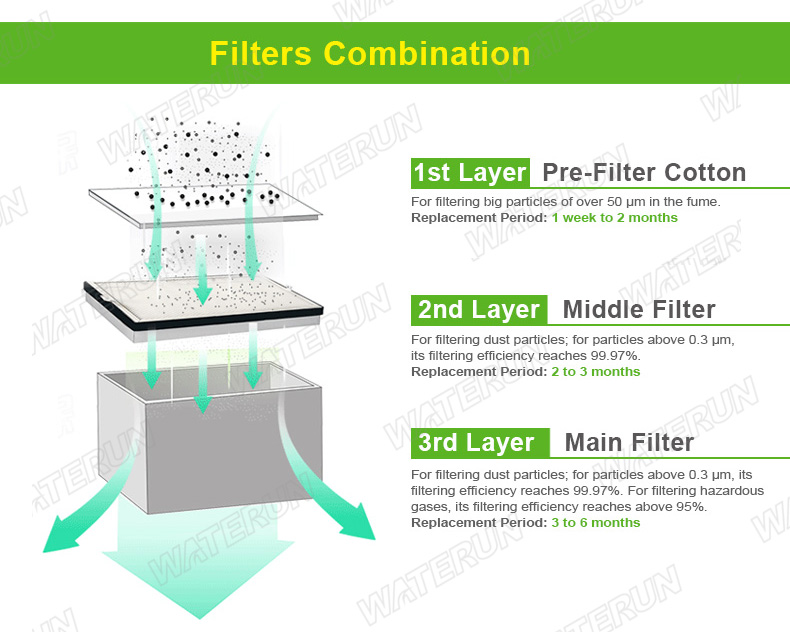

F6002 Solder Fume Extractor has a triple-filter system which help to filter the hazardous fume and dust. The efficiency reach to 99.97%
1) Pre-Filter: the large-size pad filter can filter large particles of dust
2) Middle Filter: it filters the bigger powders for prolonging the main filter's life.
3) Main Filter: it includes HEPA (high efficiency) filter and gas filter.

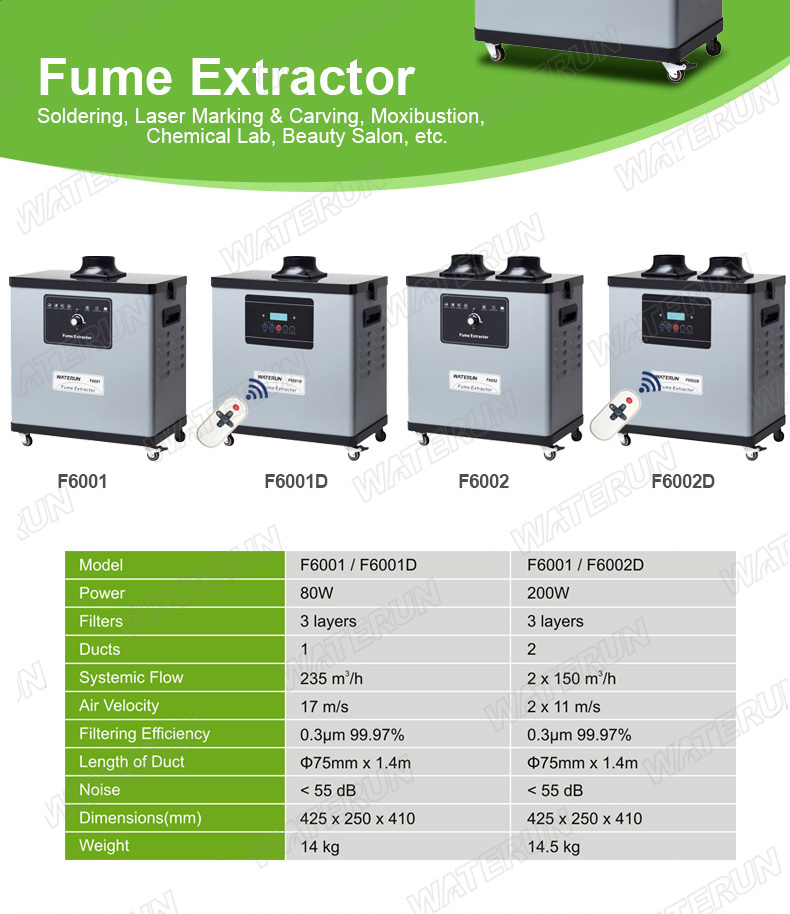

Specifications:

Features:

1. With the truly sensitive and effective "Filter Clogging Alarm System". ( When the filter gets saturated and clogged, the machine will noise. It reminds you to replace the filter in time.)
2. With the remote control, the operator can control the machine from a distance.
3. With the intelligent control panel and digital display, the operation becomes easy and simple.
4. The High-voltage and large-volume brushless motor, ensure low vibration, low noise, stable operation. and long life span.
5. Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed.

6. Wheels make the movement easy and flexible.
7. The machine surface is made of metal, more corrosion resistance and durable
8. Square and Round absorbing nozzle which have bigger filter area

Applications:

Waterun manufacturing a variety of high quality air purification systems for filter the harmful substances.

FQAs:

1.How long need to to replace the filter of fume extractor?

2. What’s the life span of our fume extractor?
Answer: Motor lifetime is (continuous working 24 hours) 20,000 hours, consider environmental factors. Usually it can use 4-5 years without any problems.

3. What’s the best distance between the nozzle and the smokes?
Answer: The distance to be 5-15cm is the best.


Competitive Advantage:

Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.
Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.

Five Technical Superiorities:

• Precise control technology achieved by microcomputer chips;
• Brushless motor + no Hall technology;
• Overheat protection technology;
• Flange Equilibrium distribution technology;
• Clogged filter alarming technology.

Patents:

In the past 10 years, New Oxygen has obtained nearly 50 patents in the air purifying field.

Certifications:

Our products have been certified with the European CE certification, ROHS requirements,

Pony certification, and China’s National Air Quality Testing Standards.
