Features:
1. New economic version, lower cost
2. Smaller size, but with bigger filtering capacity
3. 360° dirt filtering design increase the dirt holding capacity by
two times
4. DC frequency conversion motor, interlight and energy-saving,
with a life-span as long as 40k hours
5. New diamond-shaped nozzle greatly increase the extraction area

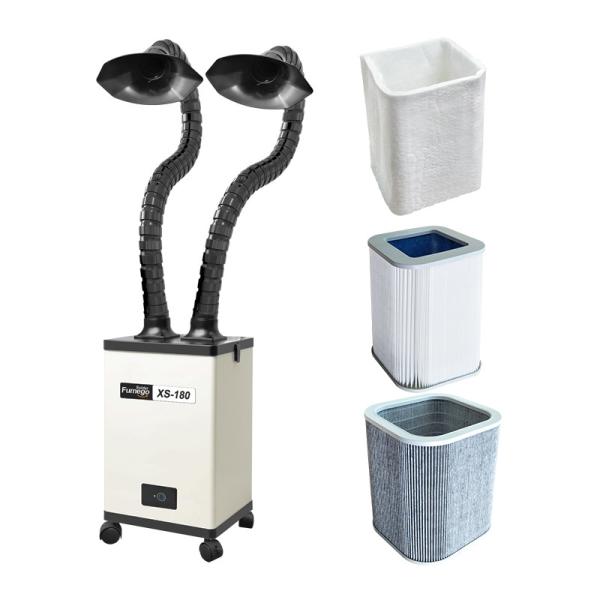

Filters Combination
| 1st Layer | Pre-Filter Cotton |
| 2nd Layer | Middle Filter(PP) |
| 3rd Layer | Main Filter (Active Carbon) |
Main Filter
Middle Filter
Pre-Filter
Replacement| item | Smoke purifying filter | traditional exhaust |
| Power | 1. 10 single-station purifying filters are 800W in total 2. 10 dual-station purifying filters are 2kw in total 3. 30 stations are 2.8kw in total, low in power | 1. Total number of smoke-suction stations is 30 2. High power, over 7.5kw |
| Noise | 45 to 55 db, which does not affect staff of factory and residents
in the neighborhood | Noise, over 80db, which affects staff of the factory and residents
in the neighborhood |
| Smoke return | No | May return from windows or air outlets |
| Occupational disease | purify air and lower the possibility of occupational diseases and
related disputes or even claims, as well as sick leave and
dimission rate | 1. Smoke is not exhausted thoroughly 2. Residual smoke may cause occupational disease dispute and clamis
as sick leave and dimission rate |
| Workshop air purifying rate | Purification rate of 0.3 micron dust particle can reach up to
99.97%, which is over 300 times as high as that of normal air | Zero. Only with air extraction and exhaust function |
Application:
Manual Soldering Fumes, Solder Pot Fumes, Soldering Robot Fumes,
etc
Patents:
In the past 10 years, we have obtained nearly 50 patents in the air
purifying field.
Certifications:
Our products have been certified with the European CE
certification, ROHS requirements, Pony certification, and China's
National Air Quality Testing Standards.
Honorable Customers:
We have been providing our fume extractors to a number of Global
Top 500 Companies, such as Samsuing, LG, Philips, ABB, Bosch,
Honeywell, Panasonic, Toshiba, Toshiba, Nikon, Yamaha, Huawei,
Foxconn, Vtech, etc.
Overseas Markets:
Our products are getting popular in many countries around the
world. Currently, our products have been exported to USA, CANADA,
Germany, Israel, Italy,Brazil, Korea, India, Southeast Asia, etc.
Misuses of Purifier
Misuses 1: the greater the suction, the better
The greater the suction, the greater the power consumption, and the
noise will be increased, so the suction should be appropriate to
the use interface! Not the bigger the better!
Misuse 2: the higher the filtration rate, the better
High filteration rate itself is not bad, the problem is based on
the using enviorment, if there is any need to achieve a very high
filtration rate? For example, the operating room or laboratory has
a very high demand for the cleanliness of air: but in the factory
workshop, there is no need to use the high "filtration rate" like
the hospital operating room.
The higher the "filtration rate", the more sophisticated the
filtration system will be, and the greater the air resistance, so
the higher the cost will be.
Misuse 3: the greater power, the better
The greater the power, the larger the noise will be, the more
energy consumption, the higher the price will be. According to the
using situation, choosing the appropriate power, using independent
high efficiency, low power motor, although the power is small. the
suction is not small.
Misuse 4: the more the air flow, the better
Industrial purifiers focus mainly on negative pressure (when
negative pressure is high, the suction force is greater), not the
air flow. Even though the air flow is large, it may not necessarily
in great suction force.
