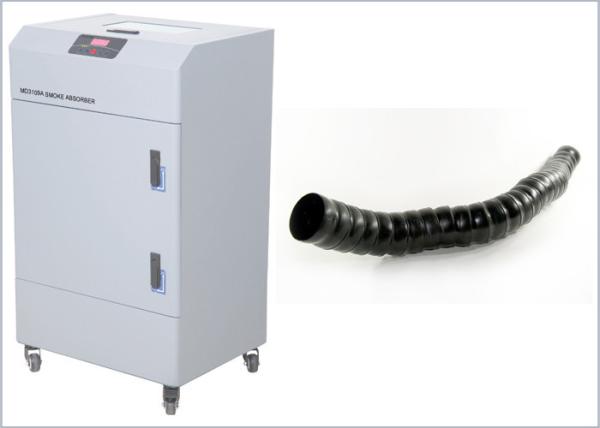

grey Laser cutting smoke absorber / Fume smoke Extractor for powder collection


Specifications:

Description of Waterun welding fume extractor

WATERUN welding fume extractor can effectively absorbe and filtere fumes or dust generated during the production process, one of the toxic and harmful gases and dust (such as formaldehyde, benzene, ammonia, hydrocarbons, hydrogen compounds, etc.) This type of welding fume extractor can play the adsorption and the filtration effect, the purification rate can be up to 99.97%, thereby preventing the environmental pollution. Clean air purification treatment directly in the indoor release, no external piping to the outdoor emissions.
Mingda welding fume extractor have been widely applied in electronics production line, soldering area, laser cutting etc.



Troubleshooting

Q1: The laser cutting smoke absorber machine can work, but little suction and issued a warning sound.

A: 1. The air outlet foist into some foreign matter

2. The primary filter cotton plug, please replace it in the original factory

3. Filter invalid, please replace the new original factory and the filter element

Q2: After replacing the filter core caused little suction

A:1. Filter element does not match the machine(please use original filter)

2. Filter not placed centrally or placed is not flat.

Q3: After pressing the power switch button and the machine is not running

A:1. Not connected to power

2. Replace the fuse in the machine body socket (fuse card slot is equipped with spare fuse)



Application:

F5000D Laser Fume Extraction not only use in Laser Engraving, but also use in Laser Cutting, Laser Marking, Soldering etc..


Standard: F5000D Laser Engraving Fume Extraction have Seven Layer Filters

Optional Filter: Different work environment may need different filter. Please tell me your work environment, we will provide better option.


Features:

1,Integrated body design, structured with metal framework and processed with electrostatic spraying for premium cold-rolled steel sheet, is corrosion-resistant, environment-friendly and durable.
Original noise reduction structure design enables it to work more quietly and create a more tranquil and pleasant environment.
Unique modeling curve design of original “air inlet flange” better accords with fluid mechanics principle (A patent application has been filed).
Microcomputer intelligent control and digital display keep you informed of the use condition all the time.
Really effective intelligent “filter element blockage alarm” function gives an acousto-optic alarm immediately upon filter element blockage.
Available for remote operation; stepless speed regulation for you to regulate air volume and suction force arbitrarily without the necessity of bending over and lowering your head.
Small, easy to use and install; standard castor for convenient and flexible movement.

2,Four-stage purification design: filtering step by step enables harmful smoke to be better purified. Even for objects at least 8 times smaller than PM2.5, the purification rate can reach up to 99.97%.
Active carbon filter element with catalyst can absorb multiple substances that exist in the air to be purified and are with foreign odor, toxic and harmful.
Modular design for protection layer by layer: Independent replacement of primary, medium and high-efficiency filter elements enables longer service life of filter element and lower use cost.
Energy conservation and environmental protection: Built-in circular initiative filtering method can prevent indoor cold air/warm air from flowing outside without destroying temperature and humidity environment in the operation section.

3,This product has the 1.4m universal smoke suction arm, which can be positioned and oriented arbitrarily (its length may be regulated according to customer requirements, without the support of external force). (A patent application has been filed.)
Original square-shaped smoke hood, uniquely structured in accordance with aerodynamics principle, has larger smoke suction area and better efficiency. (A patent application has been filed.)
Easy installation and convenient use without the necessity of laying pipes otherwise.

4,Adopt DC brushless motor that has stable performance and long service life. Low noise, high efficiency, low energy consumption, zero maintenance and zero consumable.
The wind wheel, designed in vortex backward type, adopts special alloy material that could effectively prevent itself from being corroded.
Unique dynamic balance correction technology enables it to operate more stably and reliably, with higher wind suction volume. (A patent application has been filed.)

5,CE and PONY certified, safe and reliable.
Designed according to standards: Indoor Air Quality Standard, GB21551.1- 2008 and GB/T 18801.
Awarded national appearance design patent and the overall structure utility model patent. No counterfeiting is allowed.

Five Technical Superiorities:

• Precise control technology achieved by microcomputer chips;
• Brushless motor + no Hall technology;
• Overheat protection technology;
• Flange Equilibrium distribution technology;
• Clogged filter alarming technology.

Patents:

In the past 10 years, New Oxygen has obtained nearly 50 patents in the air purifying field.

Certifications:

Our products have been certified with the European CE certification, ROHS requirements,

Pony certification, and China’s National Air Quality Testing Standards.

Honorable Customers:

We have been providing our fume extractors to a number of Global Top 500 Companies,

such as Samsung, LG, Philips, ABB, Bosch, Honeywell, Panasonic, Toshiba, Nikon, Yamaha,

Huawei, Foxconn, Vtech, etc.

Global Market:

Our products are getting popular in many countries over the world. Currently, our products have

been exported to USA, Canada, Germany, Israel, Italy, Brazil, Korea, India, Southeast Asia, etc.

Corporate Philosophy:


We must respect each individual.

We must give the best service to our customers.

We must pursue excellent work performance.
